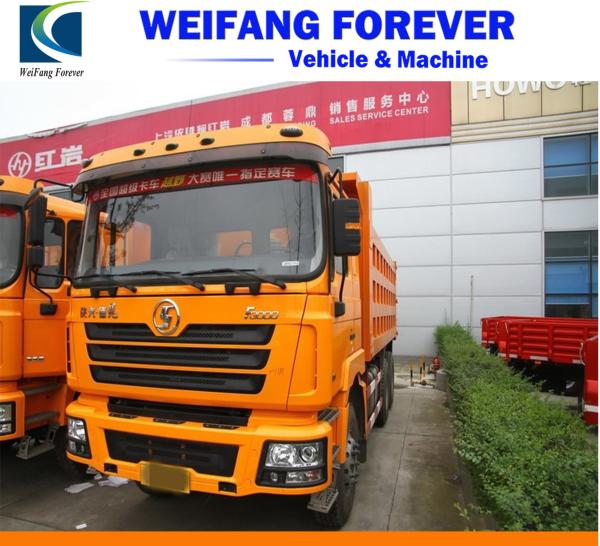

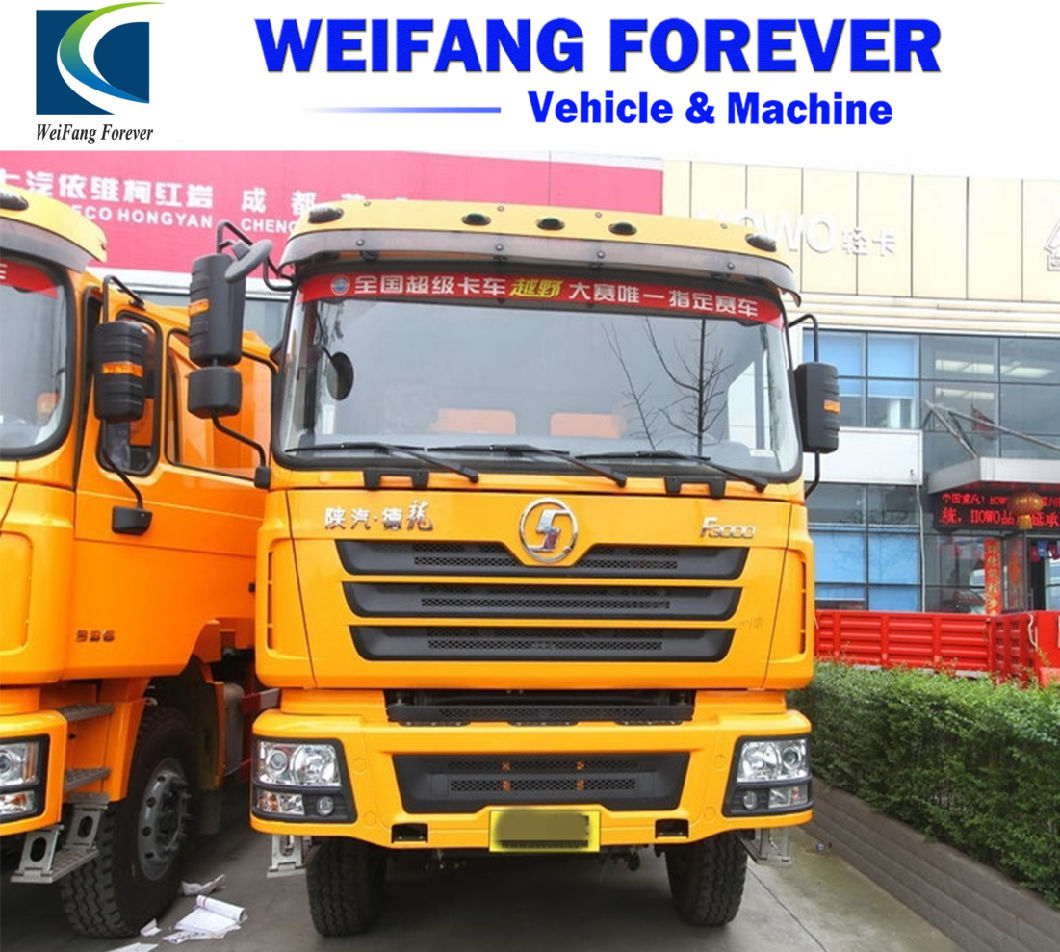

Used 30 Tons 40 Ton Dumper Sale, 10 Wheel Shacman China Heavy Dump Truck

Seats : ≤5

Horsepower : 351-450hp

Tire Certification : ISO

Tire Design : Radial

Dumping Type : Front Lifting Style

Condition : Used

Tipping System : Holland Hova Hydraulic System

Tipping Body : 6000X2300X1800mm

Air Conditioner : Have

Technology : Based on Str Technology From Austria

Transport Package : Nude Packing

Trademark : SINOTRUK HOWO

Origin : China

HS Code : 870423009

Transmission Type : Manual

Power : Diesel

Load Capacity : 51-60t

Emission Standard : Euro 2

Drive Wheel : 6×4

Engine Capacity : ＞8L

Customization : Available | Customized Request

Contact Now

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

Seats
≤5
Horsepower
351-450hp
Tire Certification
ISO
Tire Design
Radial
Dumping Type
Front Lifting Style
Condition
Used
Tipping System
Holland Hova Hydraulic System
Tipping Body
6000X2300X1800mm
Air Conditioner
Have
Technology
Based on Str Technology From Austria
Transport Package
Nude Packing
Trademark
SINOTRUK HOWO
Origin
China
HS Code
870423009

Product Description

Used 30 tons 40 ton dumper sale, 10 wheel SHACMAN china heavy dump truck
Used 30 Tons 40 Ton Dumper Sale, 10 Wheel Shacman China Heavy Dump Truck
Used 30 Tons 40 Ton Dumper Sale, 10 Wheel Shacman China Heavy Dump Truck

Used 30 Tons 40 Ton Dumper Sale, 10 Wheel Shacman China Heavy Dump Truck
Used 30 Tons 40 Ton Dumper Sale, 10 Wheel Shacman China Heavy Dump Truck
Used 30 Tons 40 Ton Dumper Sale, 10 Wheel Shacman China Heavy Dump Truck


Main Specifications:

Driver's Cab (One sleeper with A/C)
ModelF3000 Cab, with one sleeper beds, two seats, with A/C
TypeForward control cab, hydraulically tiltable by 60o
ConstructionCurrent standard all steel construction
Instrument panelClearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging
Seats4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed
Seat beltsFor driver & passenger
Glass Tempered safety glass
Sun visorsDual, adjustable
MirrorsLarge, truck type convex
Wind screen wiper3 arm wind screen wiper system with 3 speeds
Entertainment systemFM/AM/SW, 4 band radio with cassette player, two speaker and antenna
Steering wheelAdjustable steering wheel
HornAir horn
PanelLCD Panel with LED light


Engine
Engine brandWEICHAI ENGINE(THE BEST QUALITY ENGINE )
Engine modelWD12.380, 380hp
Emission StandardEURO II
Engine typeDiesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling
Displacement11.526 liters
Max. Output380hp@2200rpm
Max. torque1280Nm @1100-1600 rpm
Bore/Stroke126/130mm
Compression ratio17:1
Specific fuel consumption≤193g/kW.h

Cooling system
MediumWater
Radiatorheavy duty type
Cooling fanVisco static fan tropical type
ThermostatOpening at 70-80ºC
Warning deviceAudible & visual

Clutch
TypeΦ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance

Transmission
TypeHeavy duty, manual fuller type
Model9JS160T
No of speeds9 forward + 1 reverse

Front Axle
TypeMAN 9 tons steering with double T-cross section beam
Capacity9000kg

Rear Axle
TypeSTR16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)
Capacity16T

Chassis
FrameHeavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm)
Front suspensionsemi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm
Rear suspensionsemi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm

Air in-take system
Air cleaner typeHeavy duty type
Pre filterCyclone

Exhaust system
Capable of maintaining the sound level as low as possible.

Steering
LocationLeft hand
ModelZF TECHNOLOGY hydraulic steering with power assistance
Variable ratios22.2-26.2, 17.0-20.0
Max. pressure170+10 bar
Max. output torque7618 Nm
Weight42 kg

Bumper
Installed heavy duty front and rear steel bumpers

Brake System
Service brakeDual circuit compressed air brake.
Parking brakeSpring energy, compressed air operating on rear wheels
Assistant brakeEngine exhaust valve brake

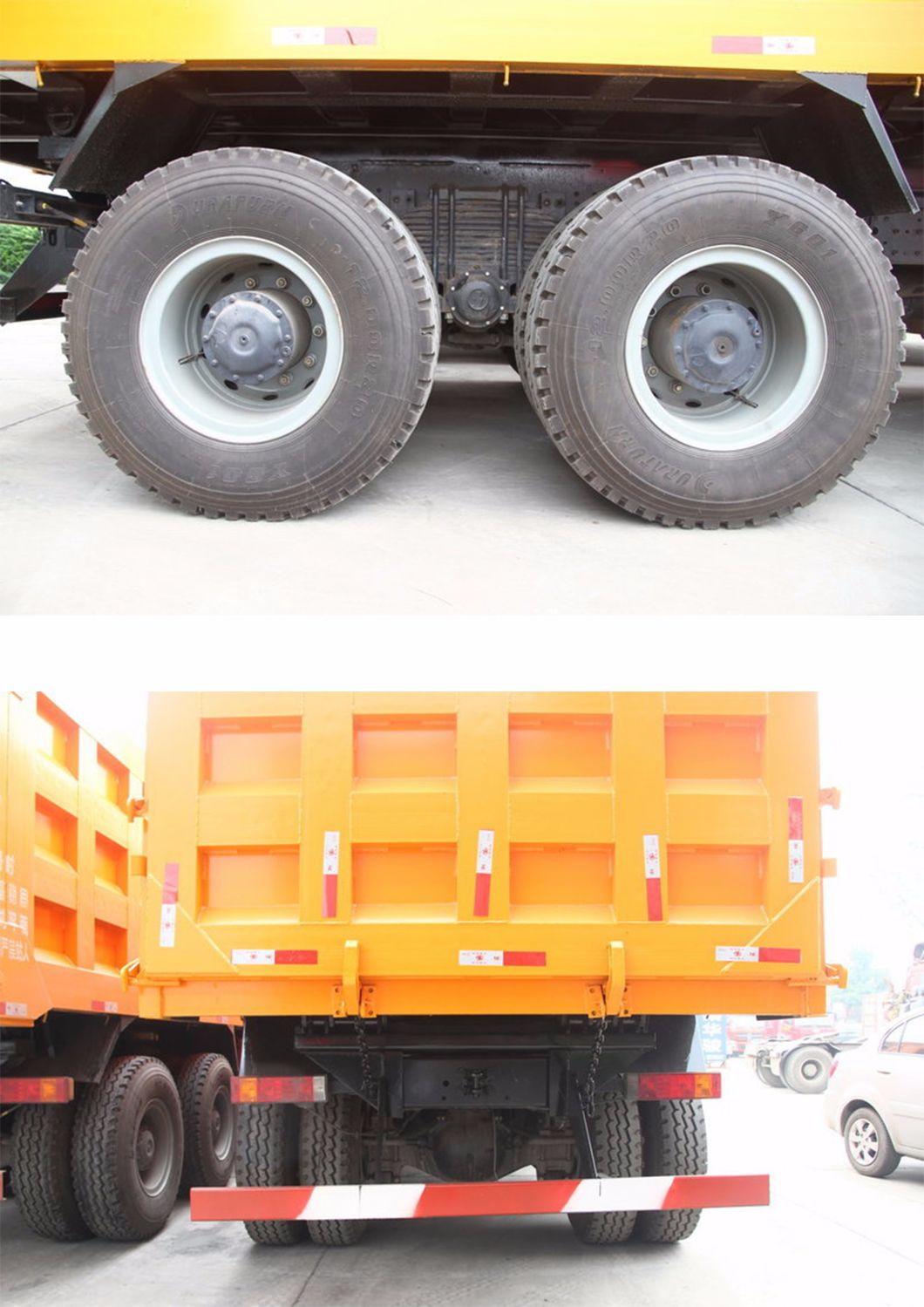

Wheels & Tyres
WheelsSingle front and dual rear
TyresDouble Coin brand,12.00R20
Quantity13

Air Supply system
Warning deviceAudible & visual
Air lineHeavy duty steel pipes

Electrical System
Operating Voltage24V, Negative grounded; Starter 24V, 7.5KW
Battery type2x12V, 165Ah/180Ah
Alternator28V, 1500W
CigarLighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp

Dimensions
Wheel base4300mm+1350
Overall length9775mm
Overall width2496mm
Overall height3730mm

Cargo body
Internal Size5800x2300x1800mm
Thickness of body steelSide 6mm & bottom 8mm
Tipping typeFront lift type with hydraulic system (HYVA hydraulic cylinder)
